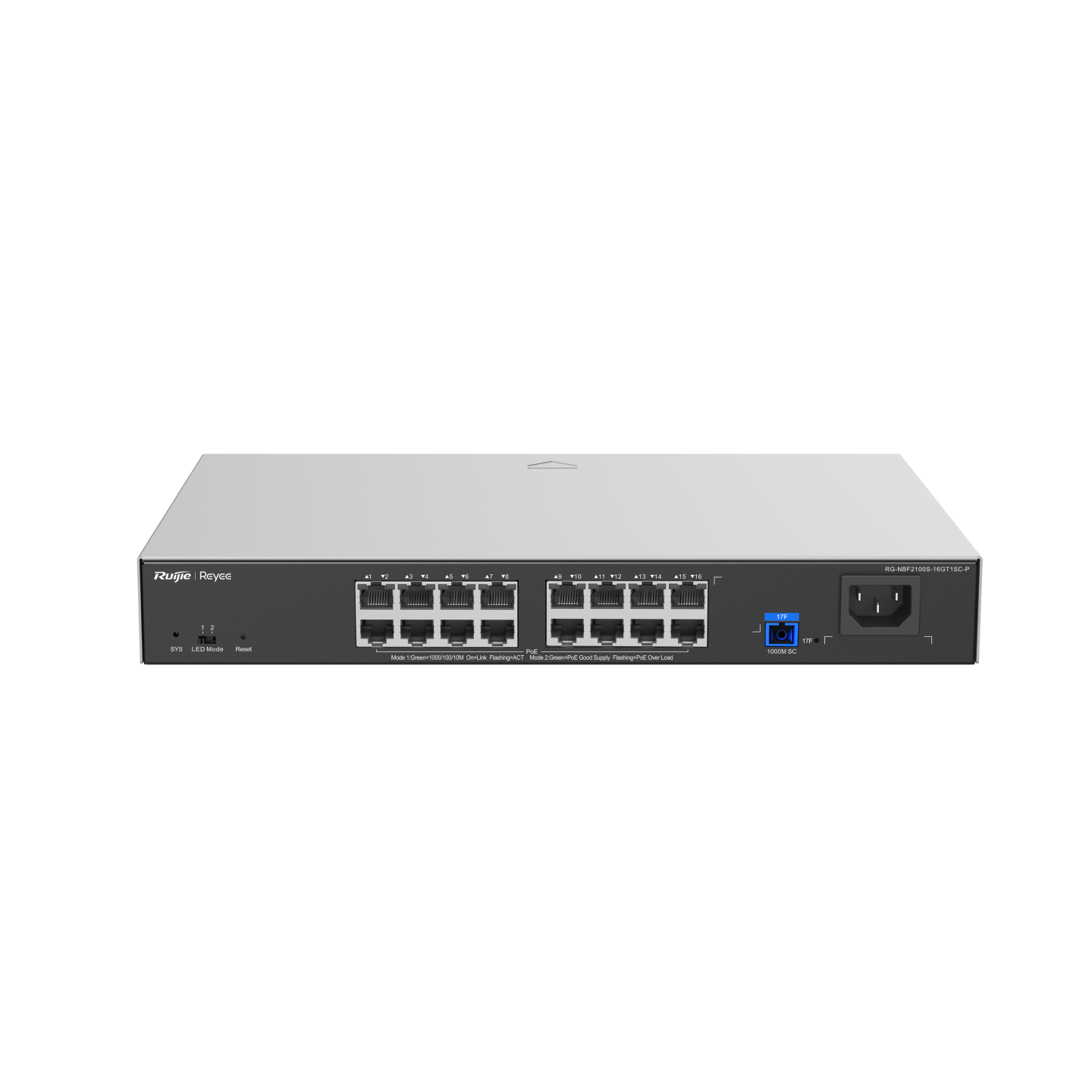

RG-NBF2100S-16GT1SC-P, 1G Layer 2 Cloud Managed PoE+ Switch

Gigabit managed optical access switch(ONU), supports Passive Optical Network(PON), 16 10/100/1000Mbps Ethernet ports, 1 Gigabit SC optical port. Maximum PoE output 240W, maximum PoE output per port 30W. Supports remote port reboot, switch reboot, VLAN division, port isolation, DHCP Snooping. Supports management by Reyee APP and MACC cloud platform

Number of 1000BASE-T Ports : 16

Number of 1G SC Ports : 1

Max. PoE Output Power per Device : 240 W

Device Dimensions (W x D x H) : 330 mm x 229 mm x 44 mm
(12.99 in. x 9.02 in. x 1.73 in.)

Switching Capacity : 34 Gbps

Forwarding Rate :  25.296 Mpps

Port Surge Protection : Common: 6 kV

Net Weight : 2.95 kg (6.50 lbs.)

Certification : CE, CB, SDPPI

Datasheet RG-NBF2 Series e-Lighten Access Switches
